    01

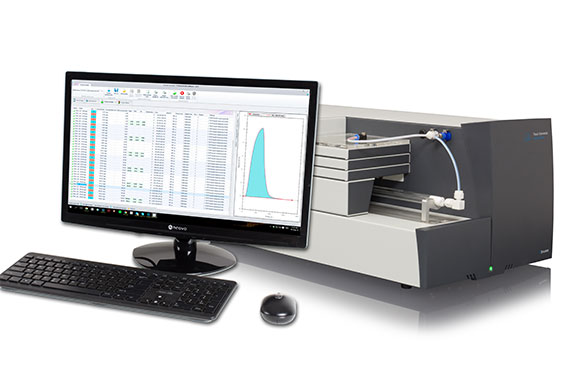

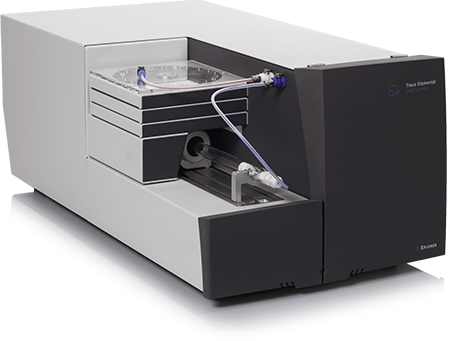

    XPLORER
    AOX/TOX Analyzer

    With more than 70 years’ experience of high temperature combustion and microcoulometric detection, TE Instruments introduces its new Xplorer AOX/TOX analyzer, capable of fast and preciously detection of various organic halogens, including adsorbable organic halogens (AOX), extractable organic halogens (EOX) and purgeable organic halogens (POX).

    Features

    XPLORER
    AOX/TOX Analyzer

    • Compact size
    • Short start-up time< 15 min
    • Fast and precise measurement of soil and liquid samples
    • Furnace: dual zone, low voltage
    • Ultra-low detection limit, high stability and reliability due to the temperature controlled titration cell
    • Low maintenance, optimal combustion and conditioning of gases results in near to zero downtime
    • Fast and easy switching between AOX, TOX, POX and EOX analysis, resulting in high productivity
    • Easy to use and intuitive user interface

      Standards

        • GB/T 15959-1995
        • ASTM D4744 Standard Test Method for Organic Halides in Water by Carbon Adsorption Microcoulometric Detection
        • DIN 38409-14 German standard methods for the examination of water, waste water and sludge
        • EN 1485 Water - Determination of adsorbable organic halides (AOX)
        • EPA 1650B Adsorbable Organic Halides by Adsorption and Coulometric Titration
        • ISO 9562 Water quality — Determination of adsorbable organically bound halogens (AOX)

      Specifications

      • Principle: combustion/microcoulometric method
      • Furnace temp. (max)：1150°C
      • Sample pretreatment method：Column method and/or batch method
      • Analysis time：3-10min
      • TEIS 2 software
      • Dimensions（W xH xD）：40 x28 x70cm
      • Weight：29kg

      Other options

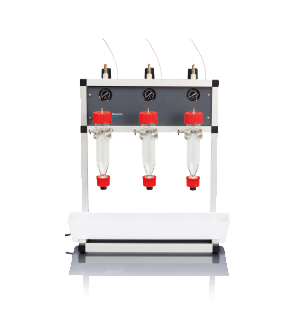

      XPREP
      Three-channel sample pretreatment device

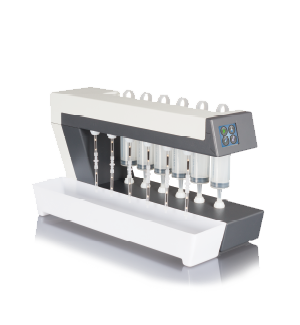

      XPREP A6
      Automated sample pretreatment device

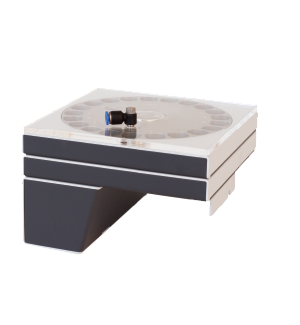

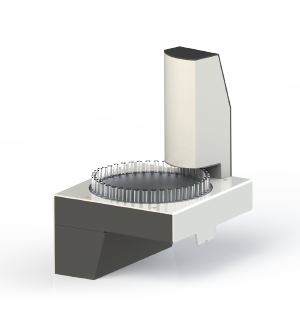

      NEWTON
      Aotusampler

      TUSCAN
      Aotusampler

      Applications

      Drinking water, Surface water, Ground water,Effluent water,Influent water, Waste water, Cooling water, Salty water, Process water, Pulp and paper products, Soil, Sediment, Sludge and waste oil
