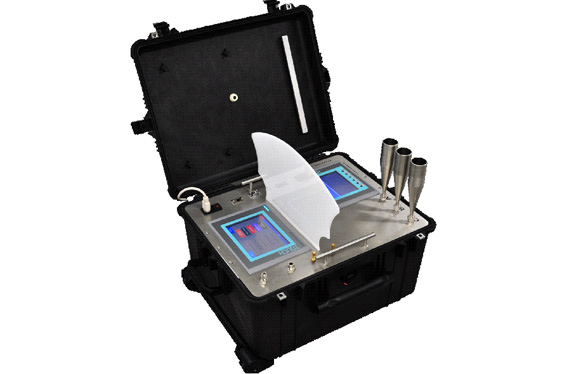

    SCENTROID SS300
    Dynamic Dilution Olfactometer

    Scentroid SS300is the world’s most advanced mobile olfactometer. It is capable of odour measurement and analysis to all international olfactometry standards: EN13725:2003, ASTM E679-04, NVN2820, VDI 3881, GB/T14675-93. Best of all, it can be transported to site and deployed in minutes for a complete accredited olfactometric laboratory.

    Features

    SCENTROID SS300
    Dynamic Dilution Olfactometer

    • Panelist Screening using N-butanol
    • Automated Binary Test mode
    • Automated Triangular Test Mode ( with 3 ports)
    • Automated YES/NO Mode
    • Automated Hedonic Tone to the VDI standard
    • Self Calibration using CO gas
    • Portable air supply unit


    Standards

      GB/T 14675
      EN 13725
      ASTM E679
      VDI 3881


    Specifications

    • Dilution Principle : Venturi Eductor
    • Control Mechanism: Mass flow controllers on both clean air and sample air intake
    • Dilution Range: 2-3 to 2-17 optional range extemsion
    • Dilution Steps: Variable
    • Accuracy: Error less than %5
    • Pres. Flow Rate: Variable: 5 lpm to 30 lpm
    • Presentation Velocity: 0.25 m/s at 20lpm
    • Response time: 0.2 sec
    • Sample Delivery: Adjustable
    • Control: Siemens PLC
    • Computer Interface: Ethernet Network/USB
    • Display and Interface: Siemens industrial 8” full color touch-screen Admin and separate industrial 5″ for panelist
    • Data Processing: Test data including end-criteria and statistics processed through PLC

    Applications

    Environmental odor analysis, food odor analysis, material odor analysis
