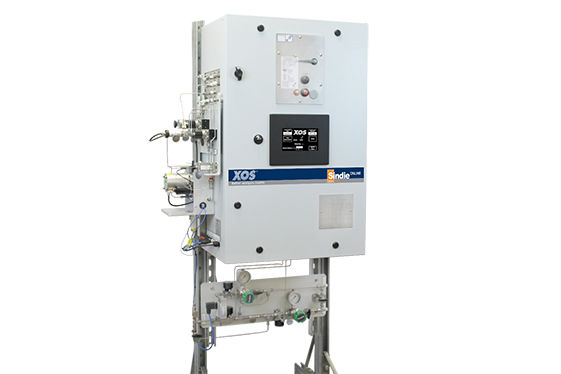

Sindie Online is an industrial-grade process analyzer delivering continuous sulfur detection to monitor fuel streams and help to prevent tank contamination. It has many advantages over competing technologies: Powered by MWDXRF, Sindie Online has an exceptional signal-to-noise ratio using monochromatic excitation of the X-ray source characteristic line – a technique that is faster, safer and cleaner than UVF.
A monochromatic X-ray beam with a wavelength suitable to excite the K-shell electrons of sulfur is focused onto a test specimen contained in a sample cell. The fluorescent Kα radiation at 0.5373 nm (5.373 ?) emitted by sulfur is collected by a fixed monochromator (analyzer). The intensity (counts per second) of the sulfur X rays is measured using a suitable detector and converted to the concentration of sulfur (mg/kg) in a test specimen using a calibration equation.
Pipeline terminals: interface cuts, custody transfer acceptance, and tank contamination prevention Refinery: for hydrofining unit and blending system
